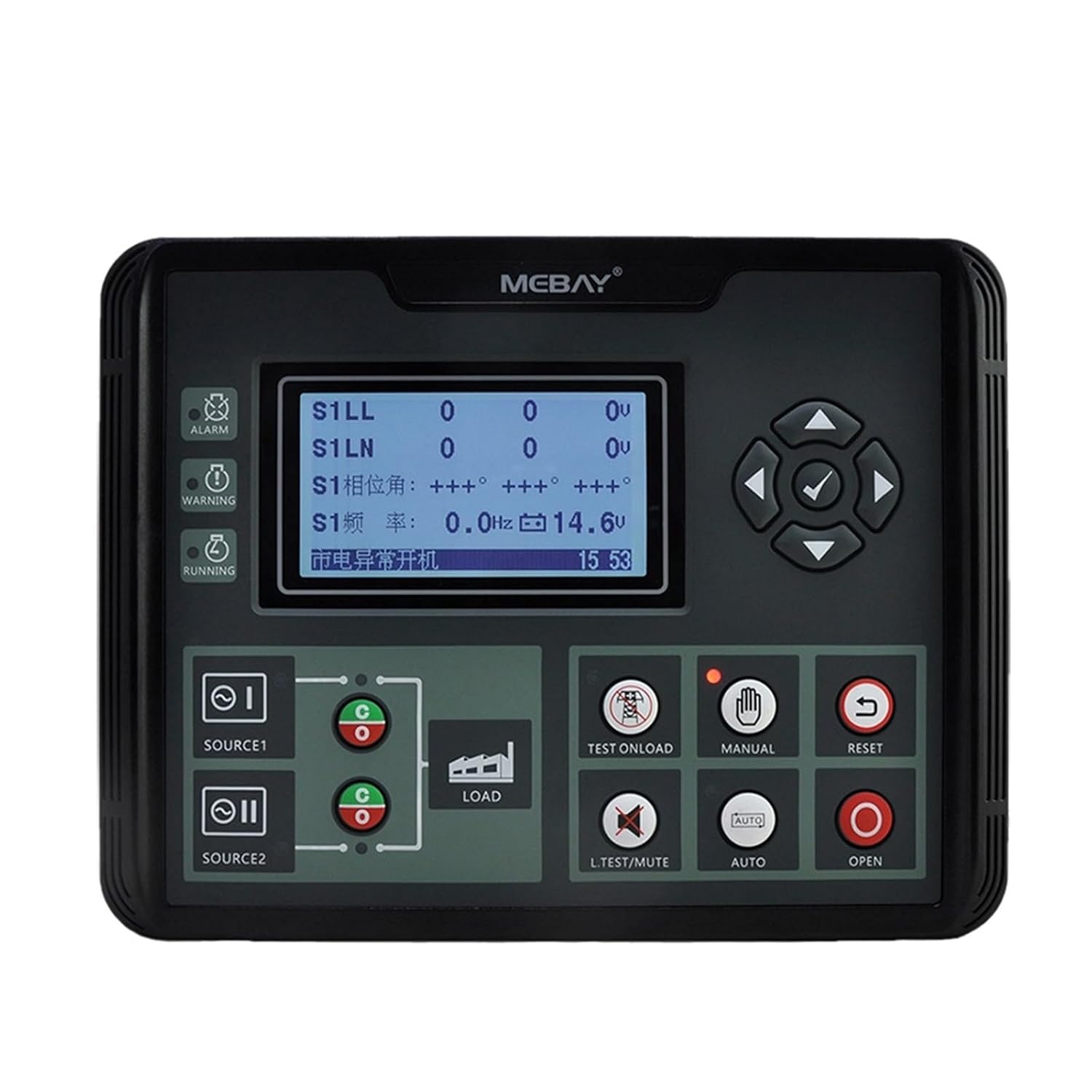

ATS520 Control Module ATS Dual Power Switch Diesel Generator Controller Panel Intelligent Programmable ATS520IR RS485(ATS520)

Electronic Engine ControlMain Features:There are four Models under ATS520 series.ATS 520: Dual power intelligent switch module.ATS 520I: Based on ATS 520, it adds power measurement function.ATS 520R: Based on ATS 520, it adds RS485 port.ATS 520IR: Based on ATS 520, it adds power measurement function and RS485 port.*Dual core 32bit high performance single chip microcomputer. 3.5inch screen, Available in Chinese/English languages, user's language setif necessary.*System type can set as: "S1 Mains S2 Mains", "S1 Mains, S2 Gen", "S1 Gen S2Mains", "S1 GenS2 Gen".*Acrylic material is adapted to protect the screen. PC material panel, waterproof, oil-proof, UV-resistant, good operation feel andlong service life.*USB Port: parameters can be set even without power through USD port to monitorin real time.*With RS485 communication port, can achieve "Three Remote" functions viaMODBUS protocol.*S1 / S2 independent overcurrent warning or trip alarm function. *Collection and display, gen, mains, power, phase and other parameters.*Display S1/S2 Total kW Energy, Total KVAR Energy, Total Close Times.*For Stored-Energy type ATS, its close relay will active after the PF Input is active.*The genset can be Manual Test on site to achieve start/stop operation.*ATS Controller has function of automatic Re-closing.*Applicable for PC Three-stage, PC Two-stage, CB and CC switch. *Applicable for 2 isolated neutral line.*Real-time clock (RTC); Event log Function (Event log can record 14 items circularly).*Automatic/Manual mode. In manual mode, can force the switch to close or open.*Can control two generators to work as Cycle Run mode, Master Run mode and Balance Run mode.*Suitable for various AC systems (3 phase 4-wires, 3-phase 3-wires, single-phase2-wire, and 2-phase 3-wire).*Input/output function, status can be shown directly.*Real time clock inside.*Totally 8 relays output, 6 relays function configurable.*Totally 6 configurable switch input, 4 switch function configurable. *Control Protection: Realize automatic ATS switching of generator sets, perfect fault display and protection functions.*Standard water-proof rubber gasket. The waterproof can IP54. *Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
